Product information:

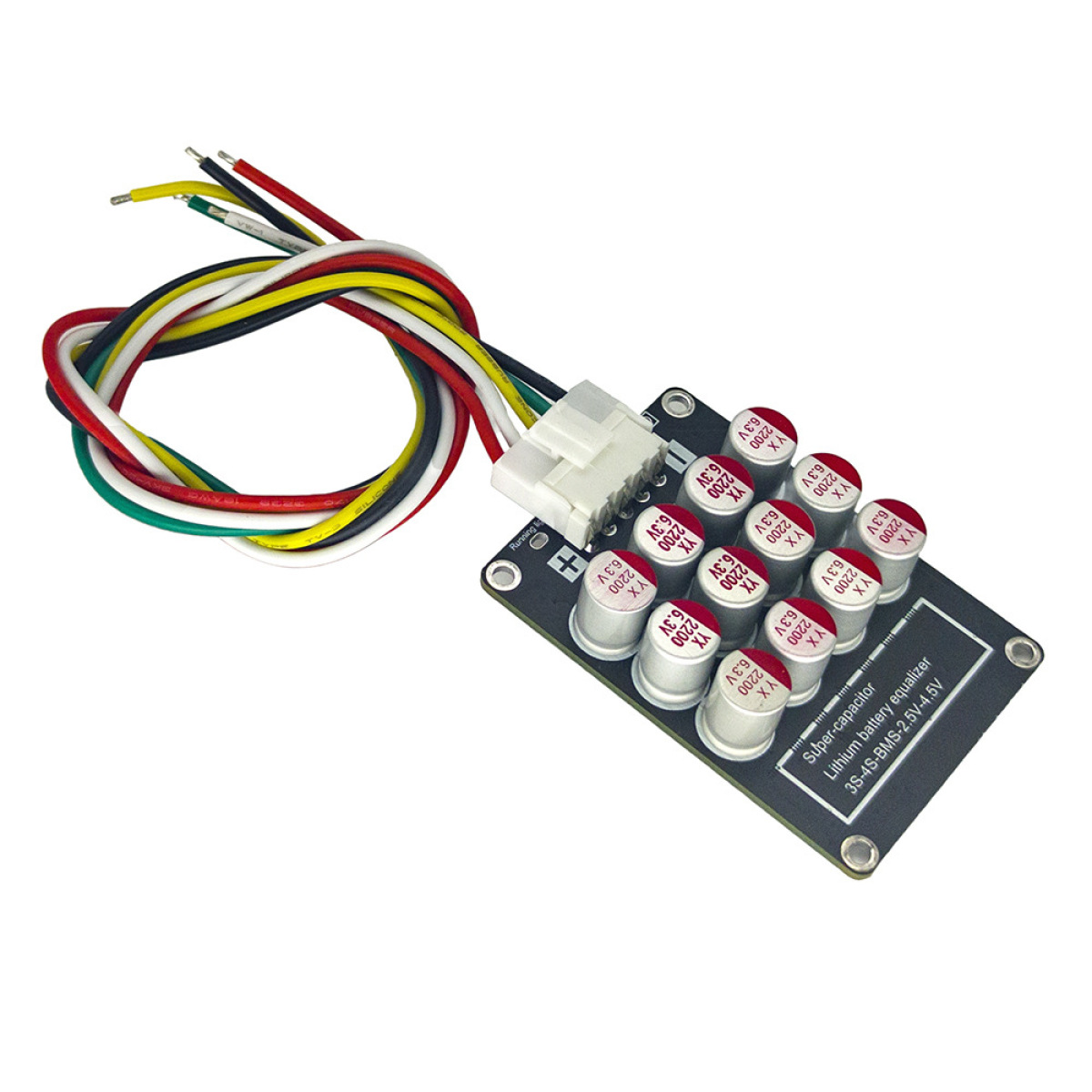

Capacitive energy transfer balance board
Technical parameters:
Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.
Working Principle, capacitance fit transfer charge Porter, the balance board is connected to the battery to open the balance work, using the original brand new ultra-low internal resistance MOS,2OZ copper thick PCB, balanced current 0-5.5A, the more balanced the battery is, the smaller the current is. With manual sleep switch, the sleep power-off mode work current is less than 0.1mA, and the balanced voltage accuracy is less than 5mv!
Static current is about 12 mA. It is recommended that the battery capacity should be 60-300ah!
With undervoltage sleep protection, if the voltage is lower than 3.0V, it will automatically stop and enter the sleep state, and the standby power consumption is less than 0.1 mA.
